MC 600

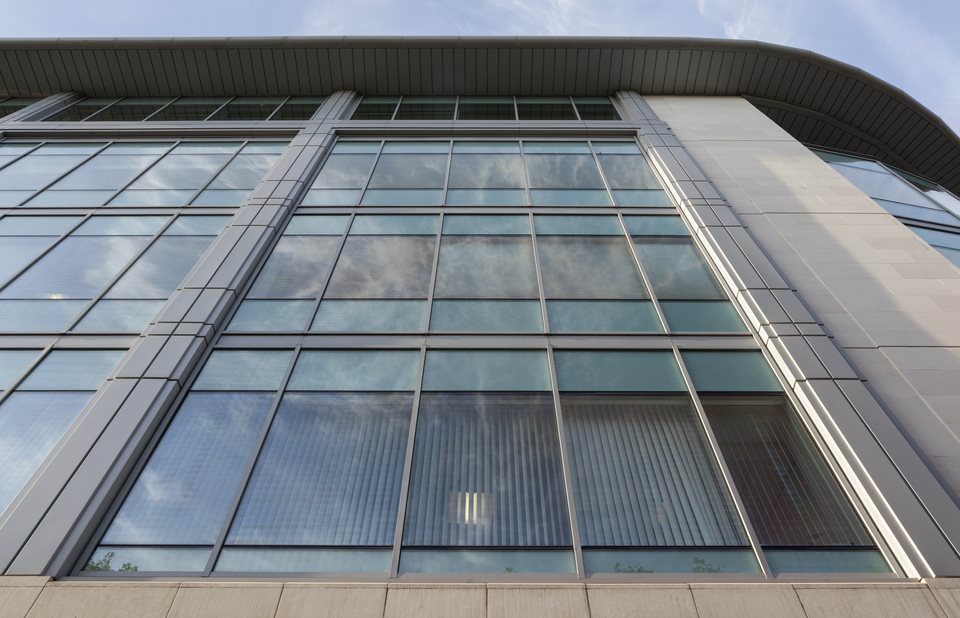

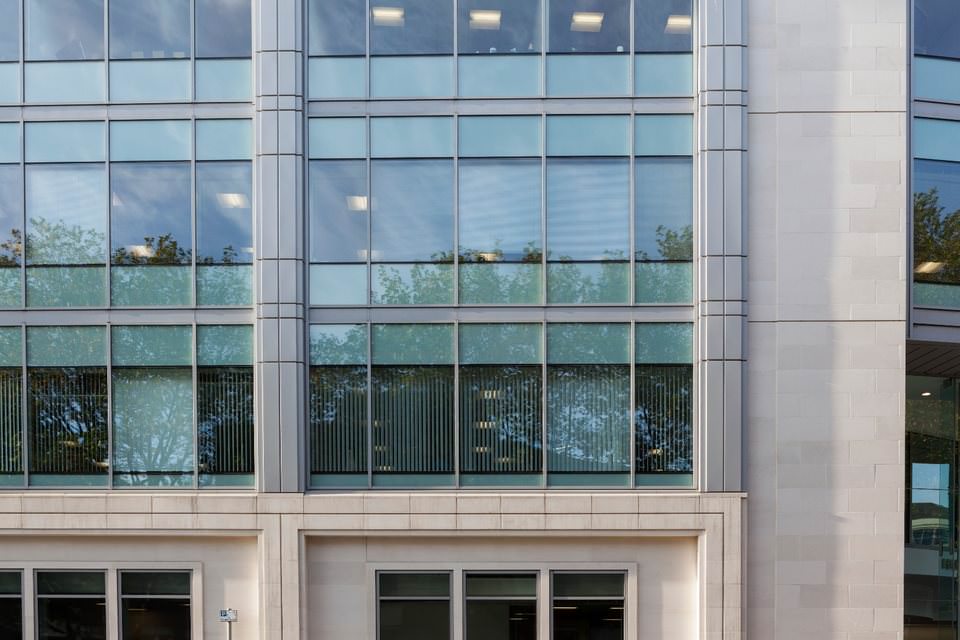

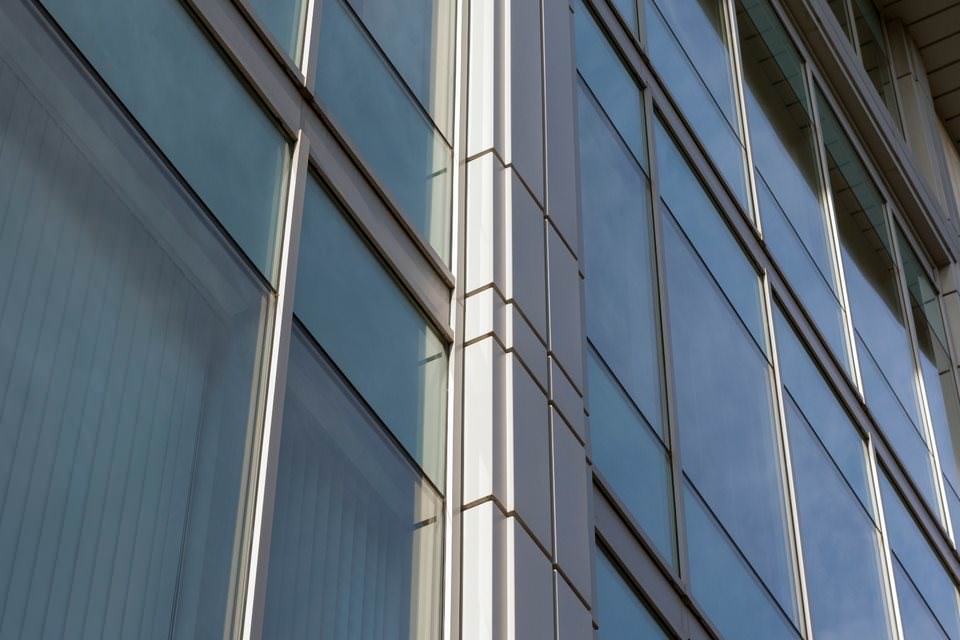

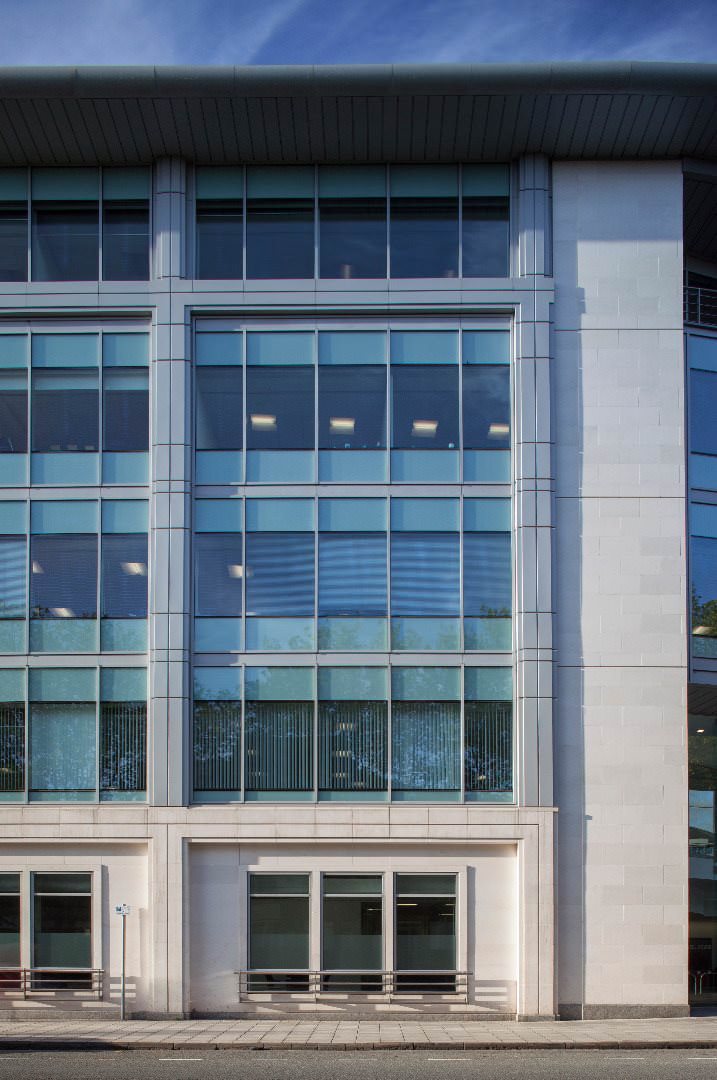

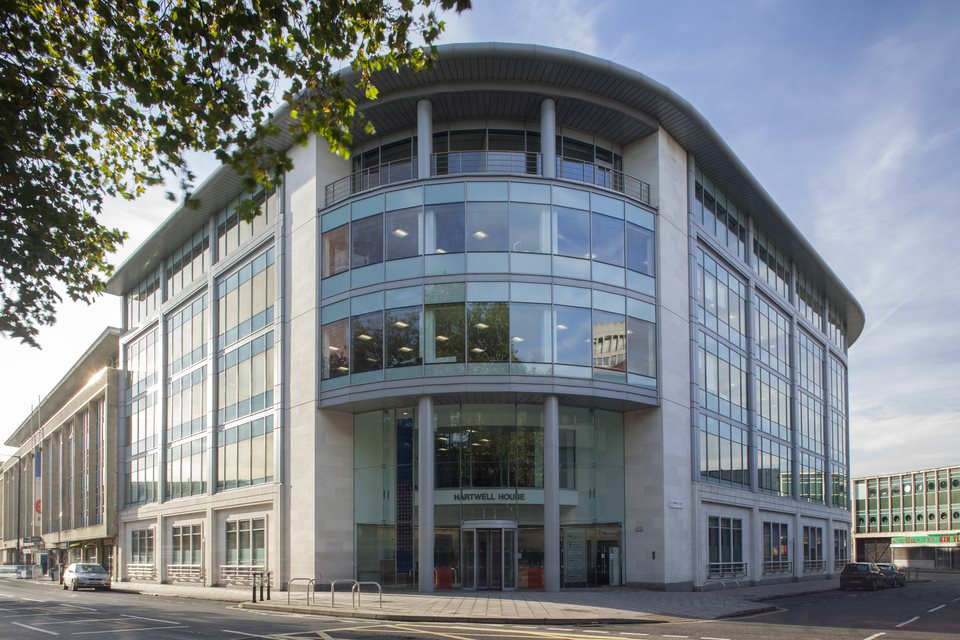

MC 600 is a new curtain wall system capable of providing impressive, practical & economic glazed facades as a solution for both small and large scale multi-storey commercial buildings and ground floor treatment.


The system has been designed with efficient fabrication in mind.

MC 600 benefits from an inter-changeable transom/mullion profile that allows fabricators to utilise the same section for both purposes, whilst achieving consistent sight lines. Depending on requirements MC600 can either be assembled on-site as a stick built system, or alternatively part assembled in the factory. MC600 can incorporate Smart window and door inserts.


Brand MC
Material Aluminium Polyamide
Dual Colour Yes
Thermally Broken Yes
NBS Available Yes
U Value 0.85W/m²K (0.7 centre pane) 1.1W/m²K (1.0 centre pane)
Air 600Pa
Water 600Pa
Wind 2400Pa
Document L Compliant Yes
CWCT Yes
Glazing (mm) 24mm - 42mm sealed units
Typical Sightlines (mm) 55mm
