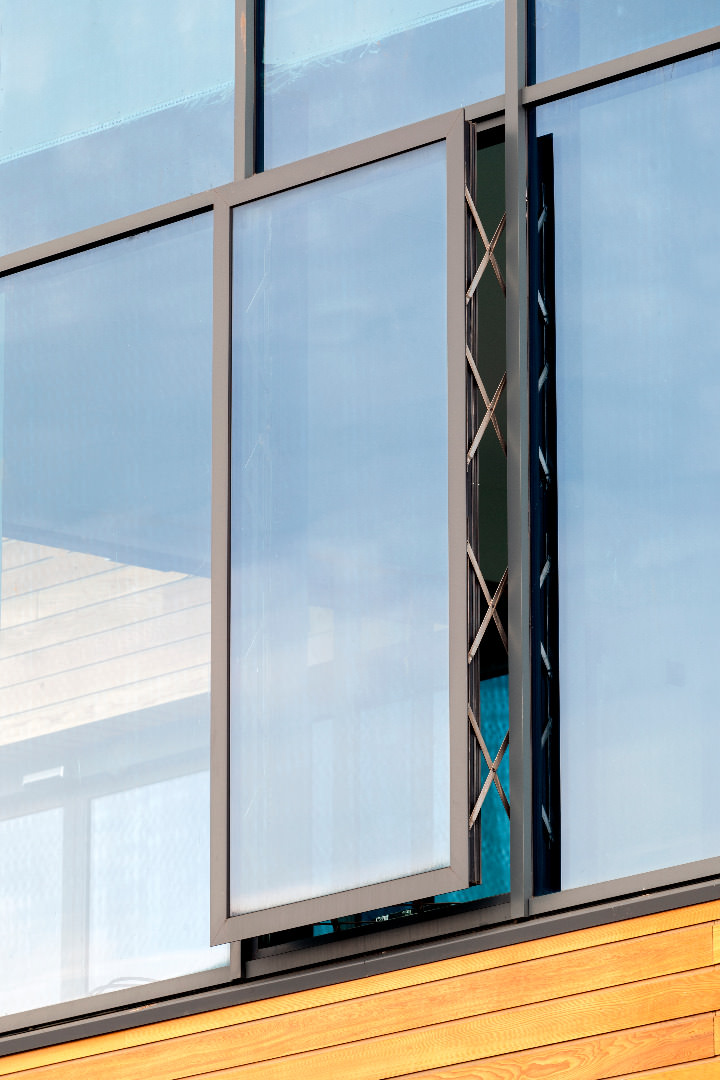

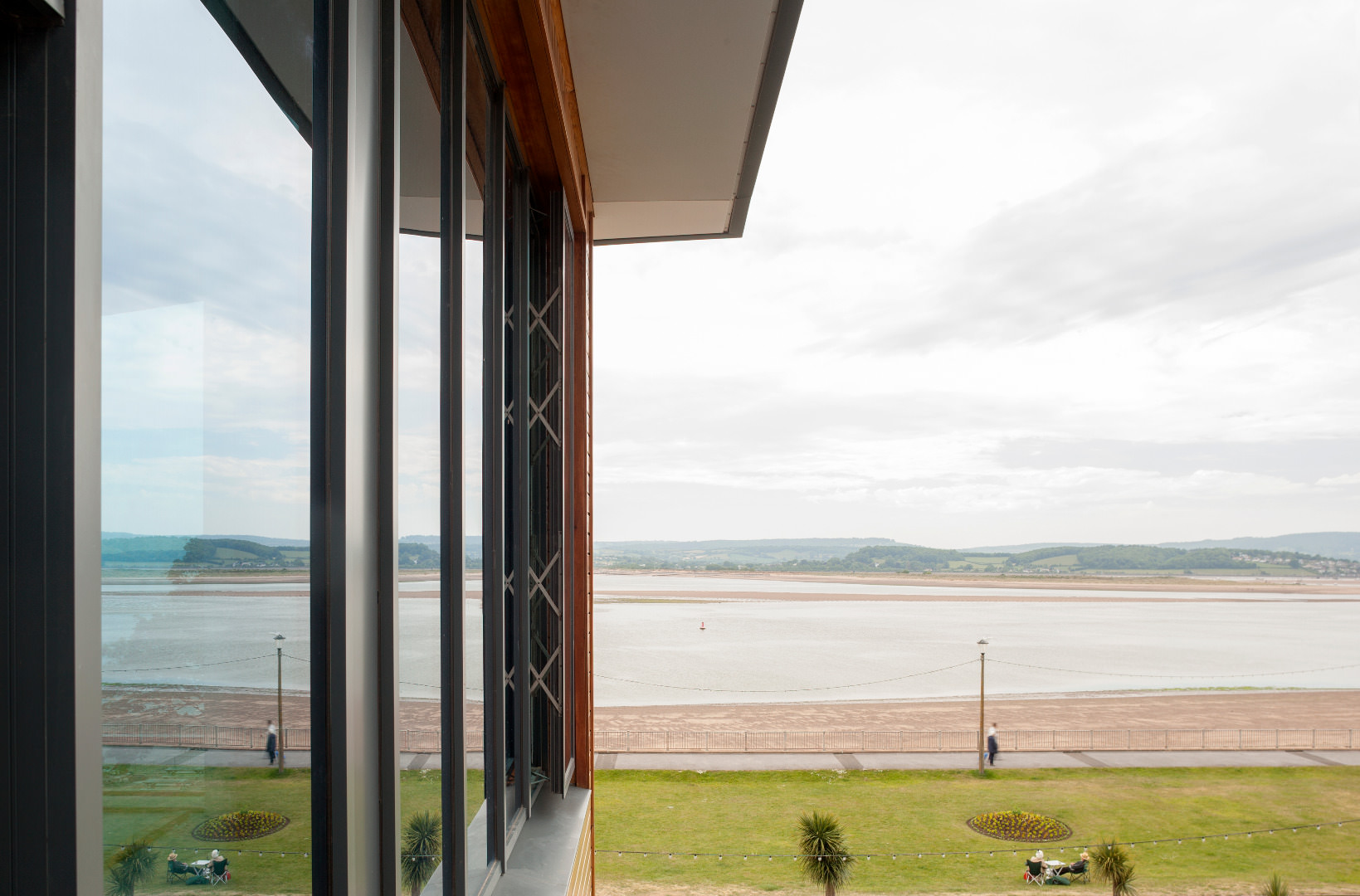

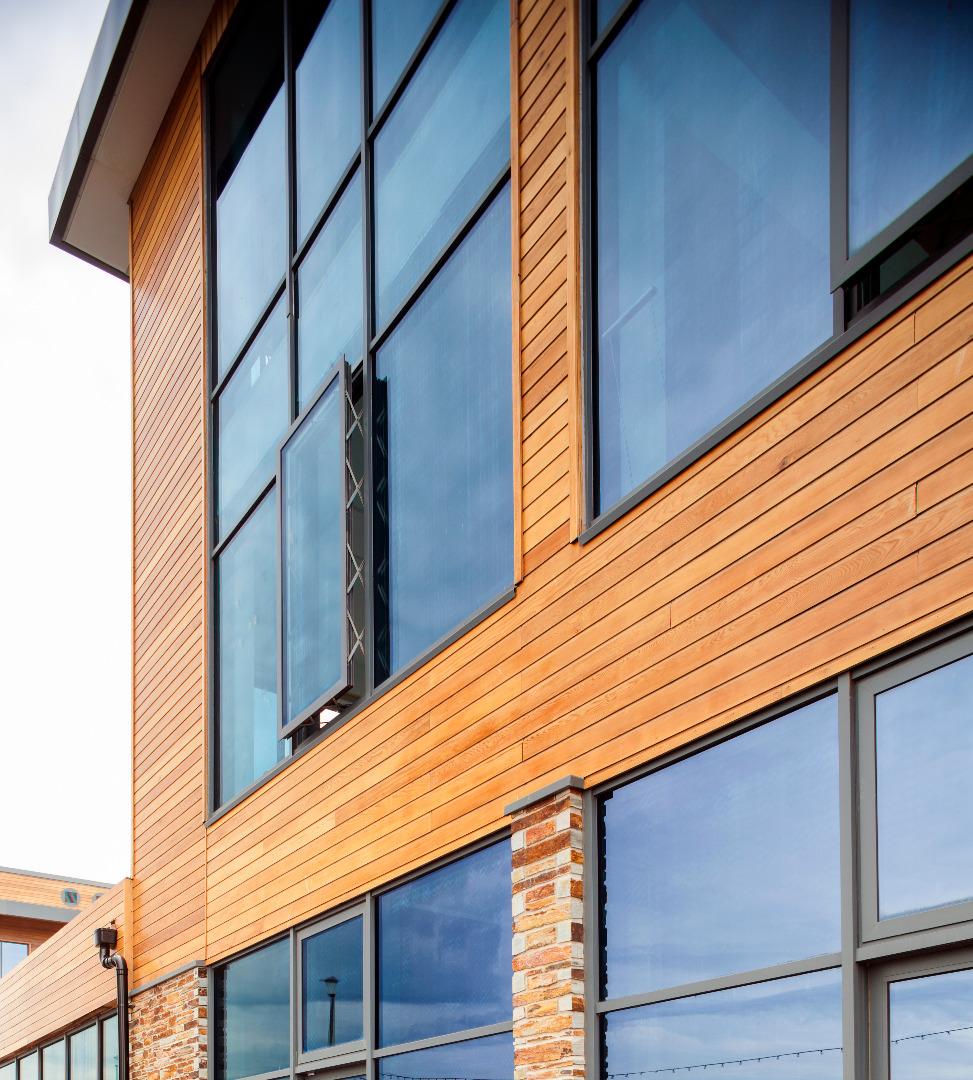

Alitherm 700 is an innovative solution for enhanced natural ventilation. The system allows for a balanced, effective airflow whilst maintaining security and safety. The system can also be either a side or top hung casement, or top swing reversible window.

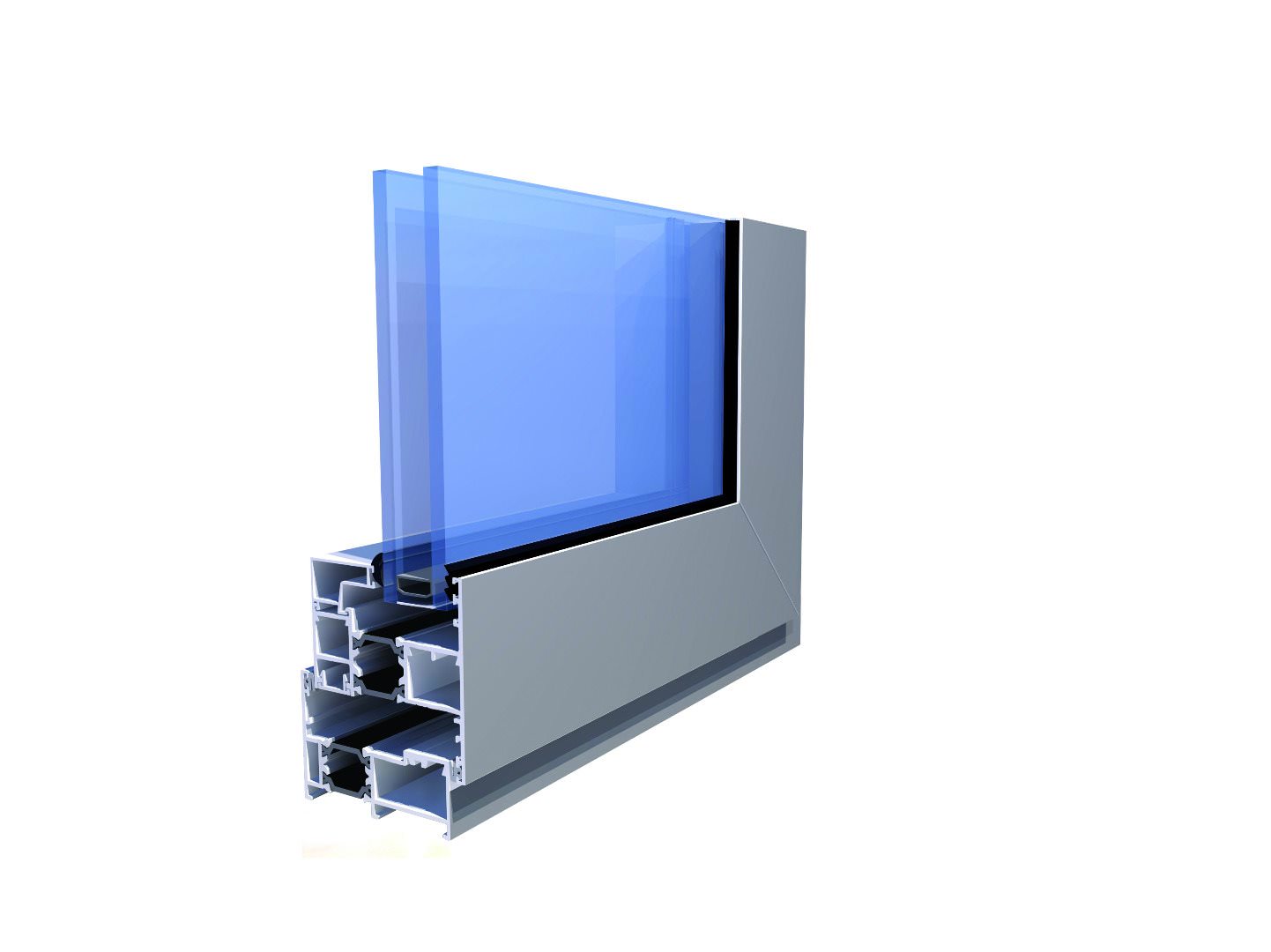

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.
Alitherm products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.
Brand | Alitherm |
Material | Aluminium Polyamide |
Dual Colour | Yes |
Thermally Broken | Yes |
NBS Available | Yes |
WER Rating | A |
U Value | 1.6W/W/m²K (using correct glass unit) |
Air | Class 4,600Pa |
Water | Class 9A, 600Pa |
Wind | Class E, 2400Pa |
Document L Compliant | Yes |
Kitemark | Yes |
BS 6375-1:2009 | Yes |
BS 7950:1997 | Yes |
BS 4873 | Yes |
PAS 24:2012 | Yes |
Side Hung Max Width (mm) | 838mm |
Side Hung Max Height (mm) | 1729mm |
Top Hung Max Width (mm) | 1729mm |
Top Hung Max Height (mm) | 2000mm |
Reversible Max Width (mm) | 1500mm |
Reversible Max Height (mm) | 1558mm |
Parallel Max Width (mm) | 2000mm |
Parallel Max Height (mm) | 3000mm |
Parallel Max Weight (kg) | 100kg - sashes above 100kg or 1500mm wide should be motorised operation only |
Glazing (mm) | 28mm double or triple glazed units |
Frame Depth (mm) | 70mm |
